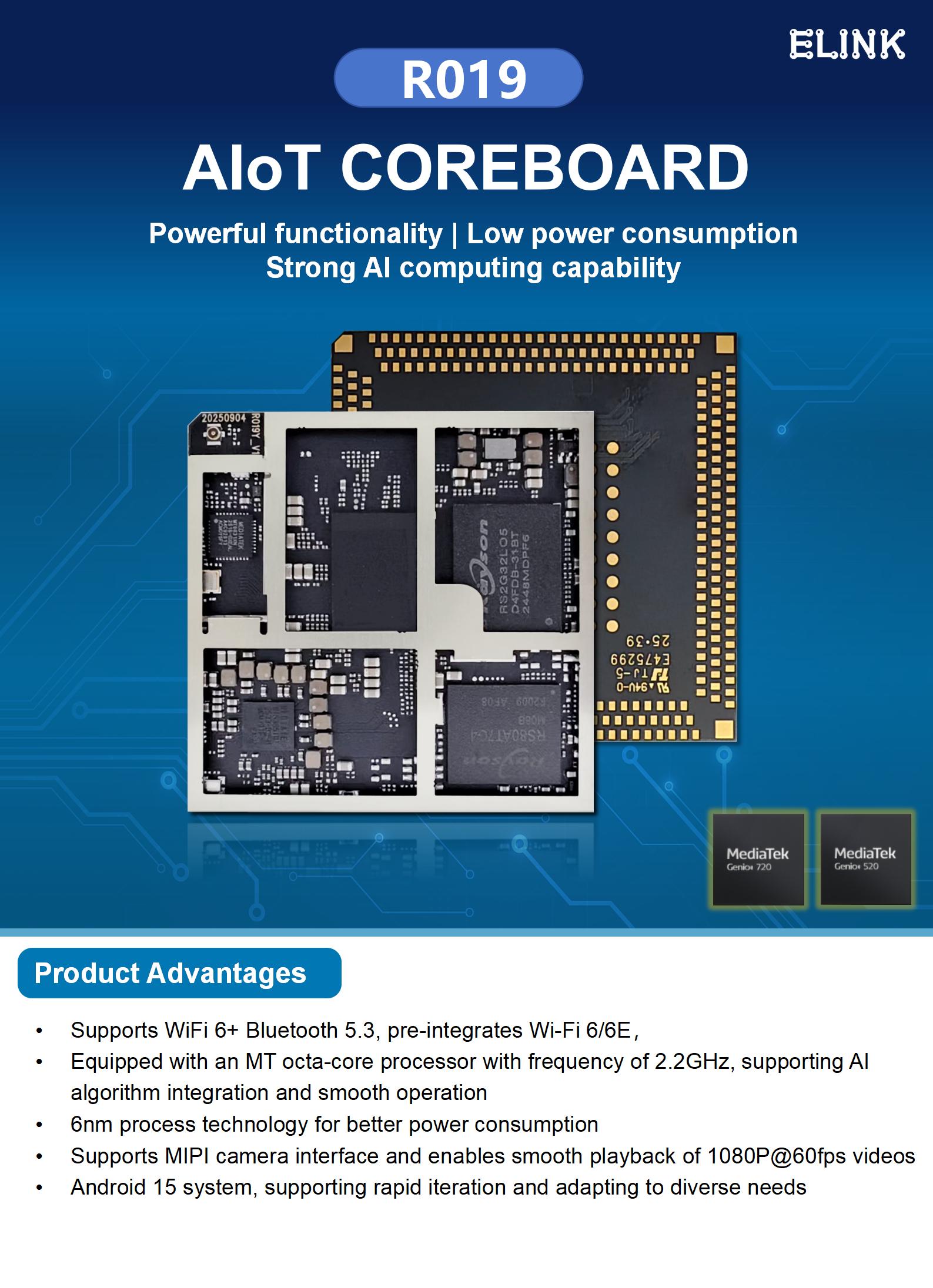

R019 AIoT Coreboard
- R019 coreboard with MediaTek MT8391(Genio 720) / MT8371(Genio 520) CPU
- Equipped with an MT octa-core processor with frequency of 2.2GHz, support AI 10Tops NPU
- Supports WiFi 6+ Bluetooth 5.3, pre-integrates Wi-Fi 6/6E
- 6nm process technology for better power consumption
- Supports MIPI camera interface and enables smooth playback of 1080P@60fps videos
- Android 15 system, supporting rapid iteration and adapting to diverse needs
Contact Us:
产品规格
| Basic Functions | MT8391 | MT8371 |
| Encapsulation | LCC 460 PIN | |
| CPU | 2x Arm Cortex-A78 2.6GHz
6x Arm Cortex-A55 2.0GHz |
2x Arm Cortex-A78 2.2GHz
6x Arm Cortex-A55 1.8~2.0GHz |
| GPU | Arm Mali-G57 MC2 1.1GHz | Arm Mali-G57 MC2 880MHz |
| Memory | LPDDR5 UFS2.X/UFS3.X 2-lane supports Hs-G48 mode
UFS2.X/UFS3.X 2-lane supports Hs-G48 mode |
|

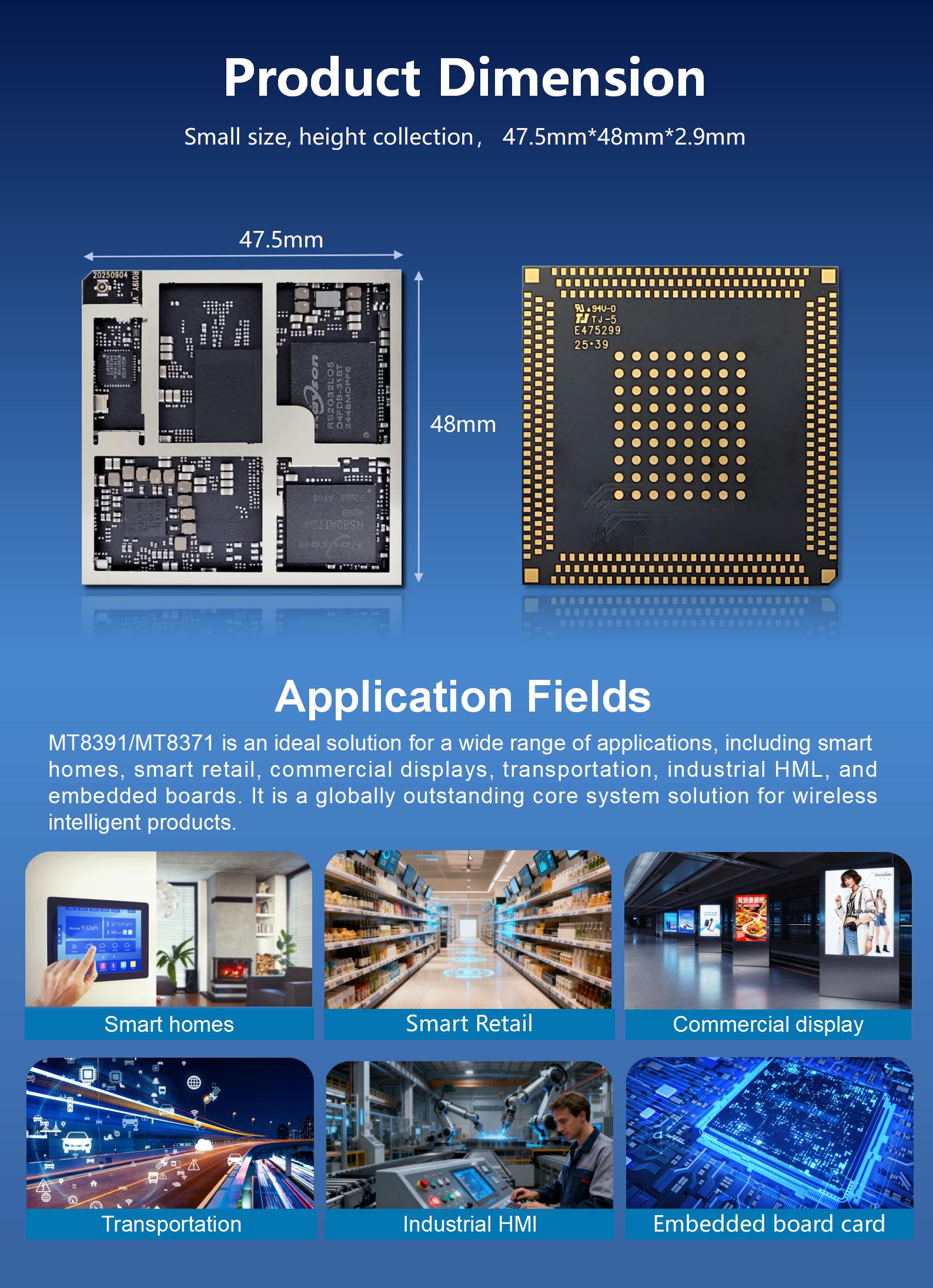

| Demensions(mm) | 47.5mm*48mm*2.9mm | |
| Wi-Fi 6 | support 802.11 a/b/g/n/ac/ax/2.4G/5G | |
| BT | 5.3 BR/EDR/BLE | |
| OS | Android 15 | |
| Working voltage | 3.7~4.2V | |
| Operation temperature | -25°C – +60°C | |
| Weight | 13.5±0.1g | |
| Video | ||
| Video coding | 4K 30fps encoding / 4K 60fps decoding, H.265/H.264 | |

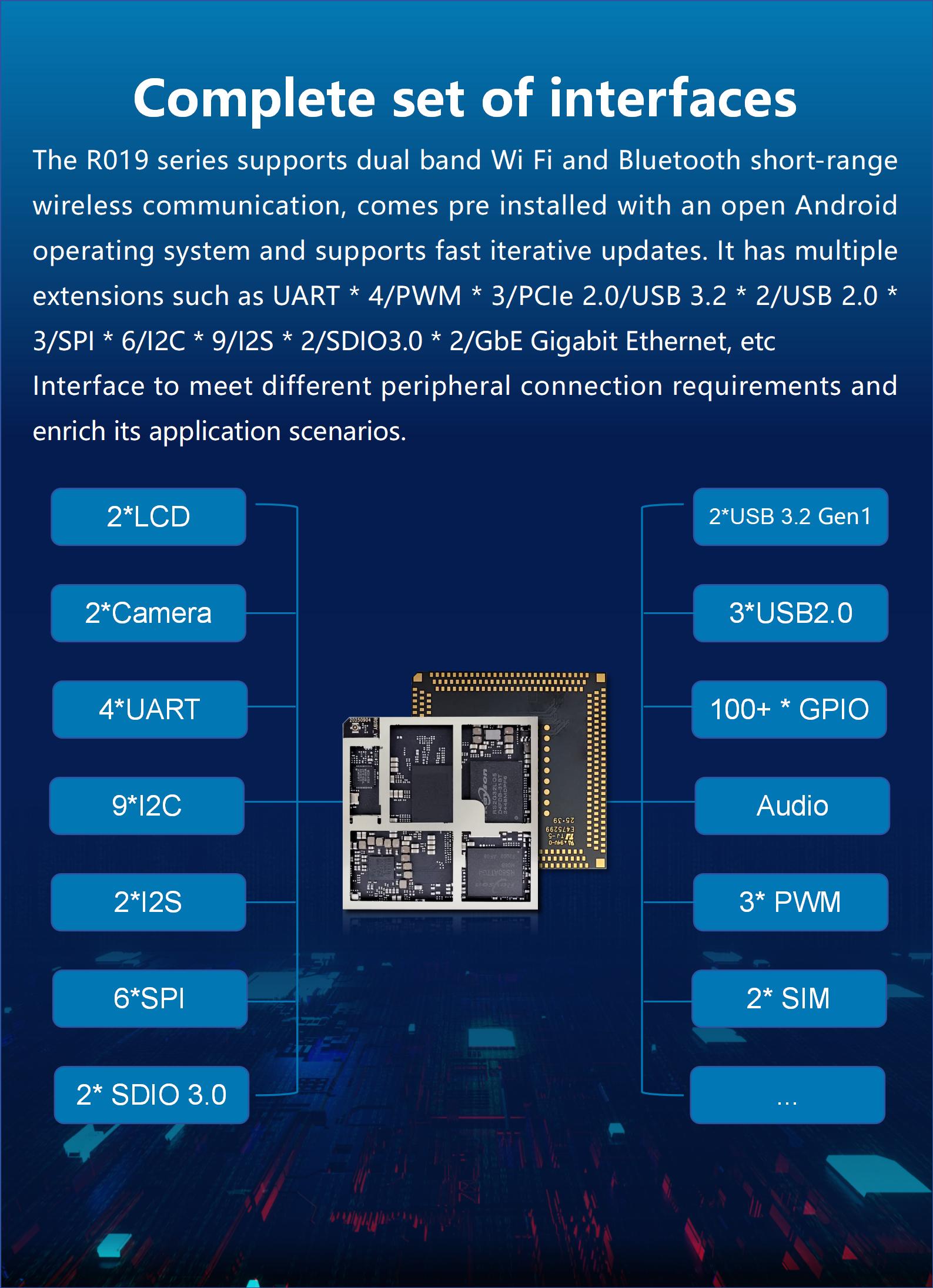

| Interface | ||
| LCD | Single Display: Max.4K60Hz; Dual Display: Max. 2.5K60+2.5K60
MIPI DSI 4Lane/LVDS single link; EDP 1.4 4Lane, DP1.4/EDP 1.3 4Lane |
|
| Camera | MT8391
Dual ISP (ISP6S) Single: 32MP@30fps Dual: 16MP+16MP@30 fps |
MT8371
Single lsP (lsP6s) Single: 16MP@30fps |
| UART | 4* UART Serial Ports，Max 4Mbps: 1 * RTS、CTS hardware flow control
1* two-wire serial port; 1* two-wire debug serial port |
|
| I2C | 9 * I2C ，support TP, Camera, Sensor | |
| USB | 2* USB3.2 Gen1 Host）， support USB OTG
3* USB2.0 |
|
| SDIO | 2* SD3.0, 4bit SDIO, SD card supports hot swapping | |
| GPIO | 100+ GPIO | |
| ISP | MT8391: 2*ISP | MT8371: 1*ISP |
| Keys | Power on/off /Reset | |
| Certification | ||
| Certification | RoHS*/CCC*/SRRC*/NAL*/CE*/FCC*/TSCA*/JATE*/TELEC* | |
